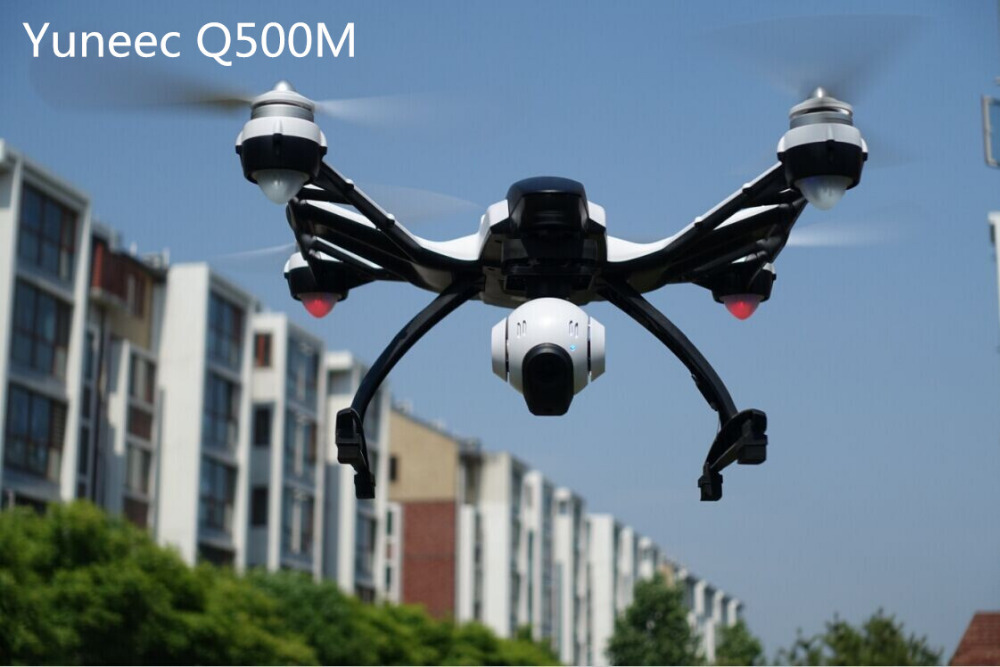

YUNEEC Q500M 4K professional aerial drone aircraft axis away Control aircraft with Aluminum case Extra Battery VS dji phantom 3
Yuneec Q500M Quadcopter Steady Grip Handheld Gimbal with Aluminum case + Extra Battery PK phantom 3
- Designed for Aerial Photo and Video
- Capture 1080p Video and 12MP Photos
- 3-Axis Gimbal Stabilizes Camera
- Includes 10-Channel, 2.4 GHz Transmitter
- Does Not Require Separate Mobile Device
- 4.5″ Touchscreen to View/Operate Camera
- OSD Overlay of Flight Telemetry Data
- Battery Lasts up to 25 Minutes
A completion level of ready-to-fly (RTF) means this version of the Q500 Typhoon Quadcopter with CGO2-GB Camera from Yuneec comes factory-assembled and that a pre-bound transmitter (radio controller) is included. More than just an RC multi-rotor, the Q500 is designed for APV – aerial photography and video. To this end, it incorporates the CGO2-GB/3-axis gimbal system, enabling you to capture stabilized 1080p video at up to 60 fps, and photos at 12-megapixels.
The Q500 is bundled with the ST10 Personal Ground Station, at 10-channel, 2.4 GHz transmitter and 5.8 GHz video receiver rolled into one hand-held unit. In addition to traditional RC joystick to pilot the quadcopter, there is a built-in Android mobile device with a 4.5″ touchscreen allowing you to view an FPV (first-person view) video image from the camera along with telemetry data superimposed.
As part of the RTF bundle, a 5400mAh flight battery is included. Up to 25 minutes flying is provided by each battery per charge – depending on wind-resistance and other factors.
CGO2-GB 3-Axis Stabilized Camera
The included CGO2-GB combines a 12-megapixel, 1080p60 camera and a 3-axis brushless gimbal into a single unit designed to capture stabilized aerial video and still images. For live view and remote operation, the camera features an integrated 5.8 GHz Wi-Fi downlink that enables operation and viewing from the 4.5″ touchscreen on the ST10 Personal Ground Station. You can also pair with a mobile device using the free CGO2 app – available at Google Play and iTunes app stores. A smartphone holder that mounts on the transmitter is included
The camera features a wide angle 130-degree FOV lens. While the gimbal that supports it features a control angle accuracy of ±0.02°. High quality video and stills are recorded to a microSD card up to 128GB in size. Low quality, upload-friendly versions can be saved onto a mobile device running the CGO2 app
ST10 Personal Ground Station
Transmitter (hand-held radio controller) and ground station system are combined into one device with the 10-channel ST10. It features a 2.4 GHz transmitter for joystick operation of the quadcopter. In addition, there is a 5.8 GHz-range receiver for the video feed from the camera plus telemetry data. A built-in 4.5″ touchscreen plus embedded Android OS enable you to control the CGO2-GB camera as well as view a live feed from it, complete with telemetry data overlaid (OSD)
Flight Control Features
The Q500 flight computer has access to a database of published FAA no-fly areas – such as zones near airports. Additionally, the maximum flight altitude can be locked to remain below 400′ AGL (above ground level) for further compliance
Designed for beginners, this mode uses GPS to establish a 26′ “SAFE Circle” around the pilot. Stick relativity is maintained, meaning the aircraft will move in the same direction the stick is pressed is relative to the pilot, regardless of which way the quadcopter’s actual “nose” is pointing. A “virtual barrier” imposes maximum radius of 300′, help to ensure visual with the quadcopter is always maintained
This mode is optimized for experienced pilots using the Q500 for aerial photography. It provides more control and steeper bank and pitch angles, helping open your work up to a greater variety of possible shots
This safety feature can be activated at any time with the simple flip of a switch on the ST10. When activated, the Q500 Typhoon will automatically return to its “home point” and land within a 10′ circle of where it took off. If for whatever reason the transmitter signal is lost, Return Home will take over and fly the Q500 back to the home point until it lands or the signal is restored
Flight Time Up to 25 minutes (depending on flying conditions)
Maximum Flying Height 400′ / 121.9 m above ground level
Note: Adjustable via the Q500 GUI
Maximum Rotational Velocity 65°/s
Maximum Bank Angle 35°
Maximum Climb Rate Smart and Angle Mode: 9.8 fps / 3 m/s
Maximum Descent Rate Smart and Angle Mode: 6.6 fps / 2 m/s
Takeoff Weight With Battery and CGO2-GB Camera: 3.7 lb / 1.7 kg
Resolution Video: 1080p at 60, 50 or 48 fps
Photo: 12 MP
White Balance Automatic
Recording Media microSDHC/XC Class 10: 4 to 128 GB
Gimbal Control Angle Accuracy: ±0.02°
Video Transmitter Frequency: 5.8 GHz
Transmit Power: 500 mA (average) to 600 mA (peak) at 12 V (7.2 W maximum) Range: Up to 984.3′ / 300 m line-of-sight
Power Requirements 7 to 14 VDC (powers from flight battery)
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Temperature 32 to 122°F / 0 to 50°C
Dimensions 4.5 x 5.3 x 2.9″ / 115 x 135 x 74 mm
Weight 6.5 oz / 185 g
Capacity 5400 mAh
Voltage 3S (11.1 V)
Model SC 3500-3 Balancing Smart Charger
Supported Chemistries Lithium-polymer
Charge Voltage 12.6 VDC; 3.5 A / 45 W maximum
Fuse 7.5 A
Power Requirements 10.5 to 15 VDC; 5 A (100 to 240 VAC adapter included)
Model ST10 Personal Ground Station
Frequency Control Channels: 2.4 GHz
Video Receiver: 5.8 GHz
Flight Modes Smart
Operating System Android
Number of Channels 10
Range Control Signal: Up to 2624.7′ / 400 m line-of-sight under optimal conditions
Display Size: 4.5″
Interface: Capacitive multi-touch
OSD Flight systems telemetry data can be viewed on-screen
Feedback Tactile (vibrating) and audible feedback
Power Requirements Built-in Battery:
3.6 V; 5200 mAh, 18.7, Wh
Charger 5 V USB charging (AC adapter included)
Dimensions Height: 9.4″ / 240 mm
Width: 16.5″ / 420 mm
Diagonal Length without Rotor Blades: 22.2″ / 565 mm
Propeller/Main Rotor Diameter: 13″ / 330 mm,Weight 2.5 lb / 1.1 kg
